Direct Central Passage
The two moving leaves open away from the center, creating a clearly defined passage through the middle of the entrance. The required passage width must be reviewed together with the complete structural opening.
Center-Opening Sliding Entrances
Bi-Parting Automatic Sliding Door
Two moving door leaves open away from the center to create a direct central passage. Plan the entrance around the required clear opening, usable travel space on both sides, door-leaf construction, sensing and control requirements.
- Symmetrical center-opening movement
- Clear central passage
- Coordinated sensing and access control
Product Definition
What Is a Bi-Parting Automatic Sliding Door?

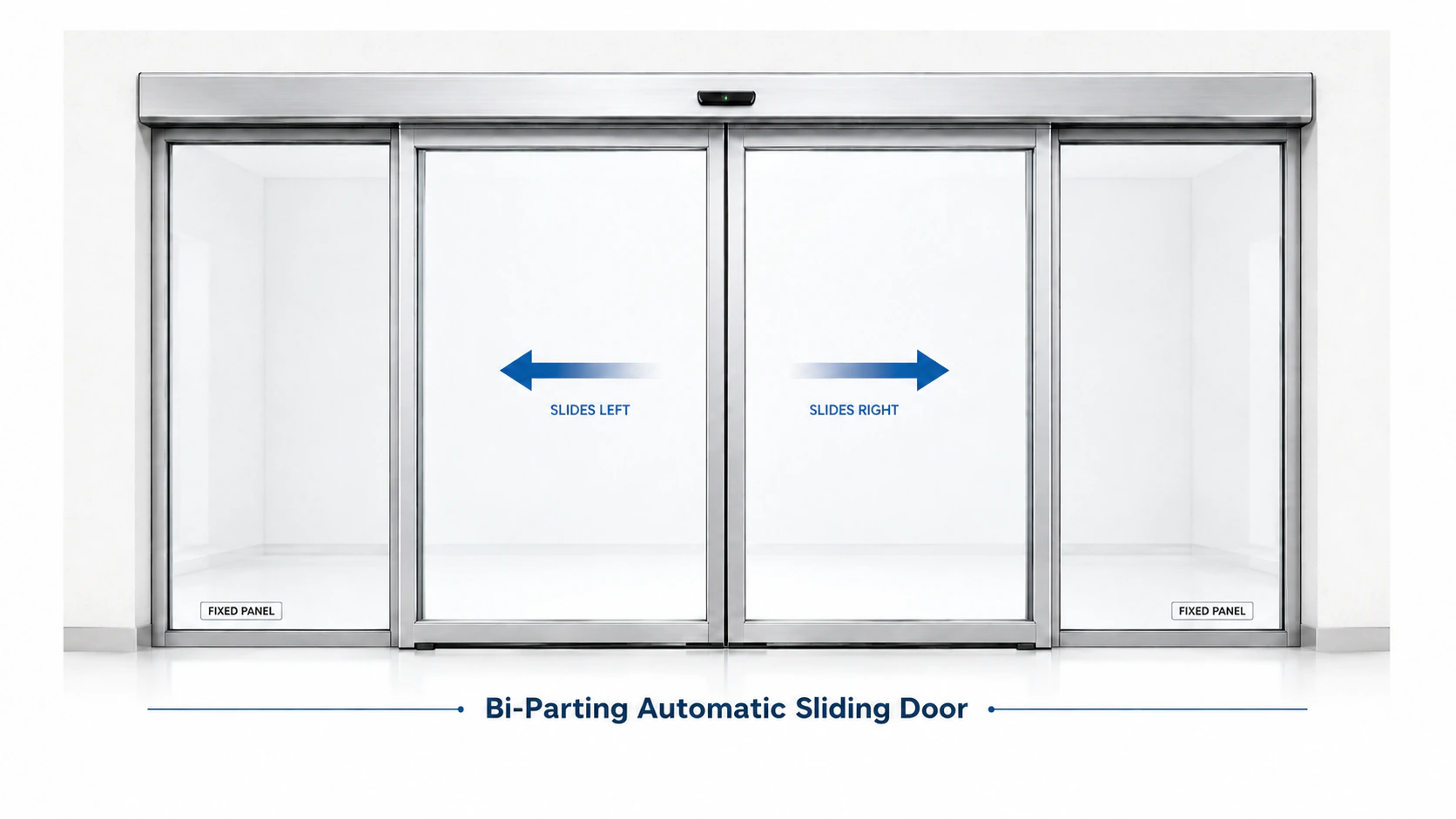

A bi-parting automatic sliding door uses two moving leaves that meet at the center when closed and travel in opposite directions when opening. The movement creates a central pedestrian route and a balanced entrance appearance.
The complete entrance may include fixed side panels, glazed or framed moving leaves, an overhead operator, activation sensing, presence-safety detection, operating controls, locking interfaces and project-defined access-control connections.
When Does This Layout Fit?
Consider a bi-parting layout when the project requires a central opening and has usable door-travel space on both sides. The final arrangement still depends on the structural opening, target clear passage, door-leaf dimensions and weight, façade conditions and system interfaces.
If the required passage cannot be achieved with the available side space, another sliding-door product direction, such as a telescopic arrangement, should be reviewed.
Decision Benefits
Why Consider a Bi-Parting Layout?
Balanced Entrance Design
Center-opening movement supports a symmetrical façade composition and keeps the pedestrian route aligned with the visual center of the entrance.
Coordinated Two-Way Movement
A central passage can support users approaching from both directions when the opening time, sensing zones and surrounding circulation are planned around the actual traffic pattern.
Flexible Project Configuration
Door leaves, frames, glass, operator system, sensors, controls, locking and supply scope can be reviewed according to the project. Final options depend on verified dimensions, loads and interface requirements.
Selection Conditions
Confirm Six Conditions Before Choosing a Bi-Parting Layout
Structural Opening
Confirm the full opening width and height, and identify whether the dimensions are structural, finished, or preliminary.
Required Clear Passage
Confirm the usable passage required when the door is fully open. This affects the moving-leaf and fixed-panel arrangement.
Side Travel Space
Confirm the usable travel area on both sides. Columns, walls, glazing lines, façade details and other obstructions may affect the layout.
Door-Leaf Construction
Confirm the proposed leaf dimensions, frame system, glass, hardware and estimated or verified leaf weight.
Traffic and Sensing
Describe approach directions, peak traffic, wheeled access and the required activation and presence-safety sensing zones.
Access and Supply Scope
Confirm access-control, locking and operating-mode requirements alongside the complete-door scope and work by others.
Layout Comparison
Bi-Parting or Telescopic?
| Selection point | Bi-Parting Sliding Door | Telescopic Sliding Door |
|---|---|---|
| Opening movement | Two moving leaves travel away from the center | Multiple leaves slide and stack in sequence |
| Space condition | Requires usable door-travel space on both sides | Consider when side travel space is more restricted |
| Passage position | Creates a central passage | Passage position depends on the selected layout |
| Main review points | Symmetry, central route and travel space on both sides | Leaf stacking, pocket space and opening utilization |
This comparison is a planning guide rather than a fixed engineering rule. Final selection requires the opening dimensions, leaf construction and operator configuration.
Explore Telescopic Sliding DoorsSystem Coordination
Typical System Components
The final supply scope should be confirmed project by project. A complete bi-parting entrance may include the following components.
Automatic Door Operator
Houses the drive, controller and supporting mechanisms above the entrance.
Motor and Belt Drive
Transfers controlled movement to the two door leaves through the selected operator configuration.
Controller
Coordinates opening, closing, speed, hold-open time, operating modes and connected signals.
Track and Hangers
Support and guide the moving leaves; selection depends on the door construction and verified load.
Activation Sensing
Detects an approaching user or receives an approved activation signal.
Presence-Safety Detection
Monitors defined areas around the threshold and door path according to the selected sensing arrangement.
Access and Locking Interface
Connects compatible access-control, operating-mode and locking functions where required.
Door Leaves, Fixed Panels and Frames
Complete the entrance according to the approved layout, material, finish and glazing specification.
Technical Reference
Technical Parameters
| Parameter | Typical configuration |
|---|---|
| Clear Opening Width | 700–3,000 mm, customizable |
| Opening Height | 2,000–3,000 mm, customizable |
| Maximum Leaf Weight | 100–200 kg per leaf, subject to operator and configuration |
| Opening Speed | 100–700 mm/s, adjustable |
| Closing Speed | 100–600 mm/s, adjustable |
| Hold-Open Time | 0–60 seconds, adjustable |
| Motor | Brushless DC motor |
| Power Supply | AC 110–240 V, 50/60 Hz |
| Activation | Microwave sensor, push button, or access control |
| Safety Protection | Presence detection and obstacle response |
| Operating Modes | Automatic, Open, Closed, Partial Open, and One-Way |
| Frame Options | Aluminum, stainless steel, or frameless glass |
| Glass Options | Tempered, laminated, or insulated glass |
| Installation | Concealed or surface-mounted |
| Access Control | Card reader, keypad, face recognition, or building system |
| Customization | Size, finish, glass, sensors, and control functions |
These specifications represent common configuration ranges for automatic sliding doors. Final dimensions, door-leaf weight, operating speed, sensors and control functions must be confirmed according to the entrance size, selected operator, door construction, traffic and project requirements.
Applications
Common Applications
Hotel Entrances
Supports a clear central arrival route for guests, luggage and daily lobby traffic when the entrance dimensions and sensing zones are properly planned.
View Hotel Entrance Solutions
Office Buildings
Fits symmetrical main entrances that must coordinate employee, visitor and project-defined access-control requirements.
View Office Entrance Solutions
Shopping Centers
Can support continuous two-way customer movement when opening size, door timing and sensing are configured for the actual traffic pattern.
View Shopping Center Solutions
Hospital Public Entrances
Suitable for public lobby or general circulation entrances where wheeled access and sensing coverage are considered. This is not presented as an airtight operating-room door.
Explore Hospital Automatic Sliding Door Solutions
Retail Storefronts
Creates a centered storefront passage while retaining a balanced glazed façade.
View Retail Entrance Solutions
Public and Transport Entrances
Can be configured for regular pedestrian flows where the structure, opening and interface requirements have been verified.
View Public Entrance SolutionsQuotation Preparation
Information Needed for a Useful Quotation
A product name alone is not enough to configure the entrance. Share the following information so the layout, supply scope and remaining decisions can be reviewed.
- Project Location
- Provide the country and project location for power, environment, logistics and project-requirement review.
- Opening Dimensions and Required Clear Passage
- Provide the structural opening width and height together with the usable central passage required when the door is fully open.
- Available Side Space on Both Sides
- Confirm the usable travel space on both sides, including columns, walls, glazing lines and other possible obstructions.
- Door-Leaf Construction and Estimated Weight
- Provide the proposed leaf dimensions, frame system, glass, hardware and estimated or verified moving weight.
- Quantity and Expected Traffic Pattern
- State the number of entrances, approach directions, peak traffic, wheeled access and expected operating frequency.
- Activation and Presence-Safety Requirements
- Describe the activation method, monitored approach areas and the presence-safety zones required around the passage.
- Access-Control, Operating-Mode and Locking Requirements
- Identify access devices, control commands, operating modes, reception release and locking requirements.
- Required Supply Scope
- Complete-door requirements, or the original order reference for spares; quantity and items supplied by others
- Drawings and Site Photographs
- Attach architectural drawings, opening details and site photographs when they are available for layout review.
Project Workflow
From Entrance Information to Delivery
- 01
Project Information Review
Review dimensions, photographs, drawings, traffic and requested scope.
- 02
Bi-Parting Layout Evaluation
Check the target central passage, moving-leaf arrangement and usable travel space on both sides.
- 03
System Configuration and Quotation
Select the provisional operator, components, sensing, controls and supply scope for quotation.
- 04
Drawing and Interface Confirmation
Confirm the layout, supporting structure, power, signals, access-control and installation responsibilities.
- 05
Production, Inspection and Packaging
Manufacture or prepare the approved supply scope, complete the required checks and package it for shipment.
- 06
Shipment and Remote Support
Arrange shipment according to the agreed terms and provide applicable documents and remote coordination.
- 2011
- Founded
- 20,000+ m²
- Factory Area
- 90+
- Countries and Regions Served
- 7,600+
- Enterprise Customers
- 1,000,000
- Operational Cycles for Key Door-System Testing
- OEM/ODM
- Solution Provider
Project Cases
Bi-Parting Entrance Examples
Small Hotel Main Entrance
A bi-parting sliding glass entrance was configured to support daily guest arrivals and luggage movement within a compact hotel lobby.
View Project Details
Office Building Main Entrance
A bi-parting entrance was supplied for concentrated employee and visitor traffic, with a wide passage, sensing and project-defined access-control interfaces.
View Project Details
Shopping Center Main Entrance
A commercial bi-parting entrance was configured for continuous two-way customer movement, including families, strollers, wheelchairs and shopping carts.
View Project DetailsFrequently Asked Questions
Frequently Asked Questions
What is a bi-parting automatic sliding door?
A bi-parting automatic sliding door has two moving leaves that meet at the center when closed and travel in opposite directions when opening, creating a central passage.
How much side space does a bi-parting door require?
It depends on the required clear passage, moving-leaf dimensions, fixed panels, frame system and operator arrangement. Provide the full opening width and the usable space on both sides for layout review.
How are the opening size and door-leaf weight confirmed?
The review uses the structural opening, required clear passage, leaf dimensions, glass, frame, hardware and verified or calculated leaf weight. Final values must match the selected operator configuration.
What sensors are required?
Sensor selection depends on the approach directions, pedestrian flow, threshold and monitored areas. Activation and presence-safety functions may be combined or provided by separate devices according to the configuration.
Can the door connect to an access-control system?
Compatible card readers, keypads, face-recognition devices, reception controls or building systems can be reviewed. Signal type, controller logic, locking and device compatibility must be confirmed before supply.
Can SEPPES supply a complete door or only the operator?
Our main focus is complete door supply. Operator systems, components and accessories are generally supplied to existing customers as replacement, spare or repair parts. Large-volume standalone requirements, such as hundreds or thousands of sets, can be discussed separately. The quotation lists inclusions and exclusions.
What affects the price of a bi-parting automatic sliding door?
Price depends on the opening, door-leaf construction and weight, operator, sensors, controls, access and locking interfaces, finish, quantity, supply scope, packaging and destination.
What must be confirmed before production?
Confirm the entrance dimensions, clear passage, side travel space, moving leaves, fixed panels, supporting structure, power, sensors, access control, locking and the responsibilities of each party.
Continue Your Research
Related Products and Planning Resources
Project Inquiry
Send Your Bi-Parting Entrance Requirements
Share the available opening, required central passage, usable side space, door-leaf information, traffic, sensing, access requirements, quantity, destination and requested supply scope.
Drawings, opening details and site photographs can help identify the remaining decisions.
